PCM Dosyfruit™ inline injection and dosing system

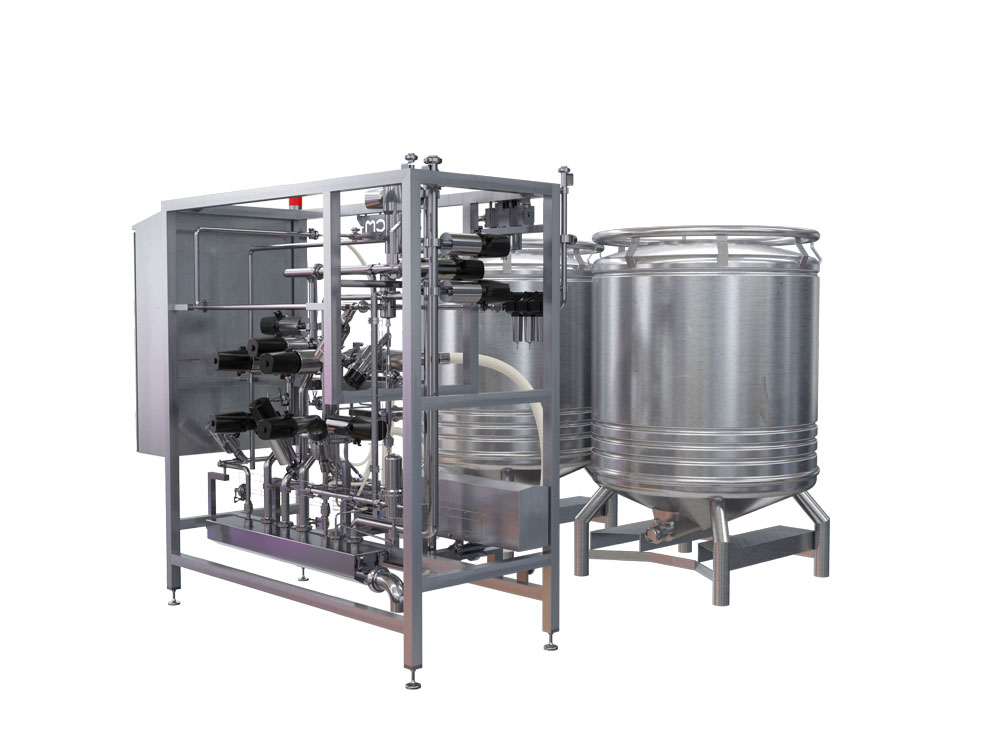

PCM Dosyfruit™ premium is a single or multi-ingredient dosing system with BIB or containers sucking that is fully automated. It is therefore the reference for the injection and dosing of fruit in fresh dairy products.
PCM Dosyfruit™ basic is a single ingredient injection system with BIB or containers sucking. This economical solution is perfectly suited to installations of fresh dairy products industries.
The ease of use and flexibility of the system translates into several important elements: Manual dose adjustment (pneumatic actuator), management of several recipes, automatic CIP control, automatic container switching, manual cuff priming.
There is also a compact version of the system that integrates the containers into the skid and allows the weighing of the integrated containers.
Discover our new PCM food pumps and systems catalogue here.
Advantages
INCREASE THE PRODUCTIVITY AND FLEXIBILITY OF THE INDUSTRIAL EQUIPMENT
- Reduction of machine downtimes : "all-automatic", automatic priming, automatic changeover of containers (no production shutdown), automatic CIP control
- Flexibility: management of several recipes, automatic doses adjustment (Brushless actuator)
MINIMIZE PRODUCT LOSSES
- Fruit on fruit or water on fruit push: limited product losses during recipes changeover
- Water push before cleaning: product recovering on pipes at the end of production
- Dosing synchronization by the packaging machine (just in time)
- Dosys™ pump accuracy: avoids overdosing
100% RELIABLE AND REPEATABLE
- Dosys™ technology (see page 7)
GENTLE HANDLING OF SENSITIVE INGREDIENTS WITH OR WITHOUT MARKERS
HYGIENIC
- Hygienic design of components
- Complete automatic cleaning and sterilization in place (sterile air, steam, air and steam filtration, containers foot sterilization)
Construction
Dosys ™ technology
- Actuator with Brushless drive
- Controlled automatic valves
- End of containers and degasing detection pot
- Sight glass on suction pipe
- Integration of utilities (sterile air, water, CIP, steam)
- Container overpressure hoses
- Drainage collection bin
- Integrated control cabinet with control panel (IHM)
- All stainless steel construction
Options
- Injection point
Performances
Reduce product waste and increase profitability with PCM’s fruit injection pumps. Features include (depending on the DOSYSTM pump used):
- Dosing repeatability/accuracy: +/- 0.5%
- Maximum production rate: 40 cycles/min (if pump set at its maximum volume capacity)
- Maximum capacity/cycles: 2 600 cc
- Maximum pressure: 20 bars
- Flavor management: 6 max (12 containers)
- Same ingredient switch time is instantaneous
- Different ingredient switch time is as low as 2 cycles
