PCM EcoMoineau™ MF and CF compact pumps for viscous fluids

PCM EcoMoineau™ MF and CF stand out as the most compact and versatile floating stator progressive cavity pumps in the industrial markets.

Capable of transferring a wide range of viscous or solid-based fluids, these pumps offer very good suction capacity.

Why Choose PCM compact pumps?

Small footprint to fit into small spaces and easily integrable thanks to a design that replaces the connecting rod with an armatureless floating stator and an elastomeric pad*
Simple and robust cast-iron or stainless-steel constructions
Low weight, low maintenance and lifecycle costs
With very low pulsation, they are ideal as dosing pumps for your viscous and/or abrasive products.

*The flexibility of the stator and pad allows the rotor to rotate off-center, with the rotor directly linked to the motor. The pump body is therefore shorter.

Discover our new PCM industrial pumps and equipment catalogue here.

Which one to choose?

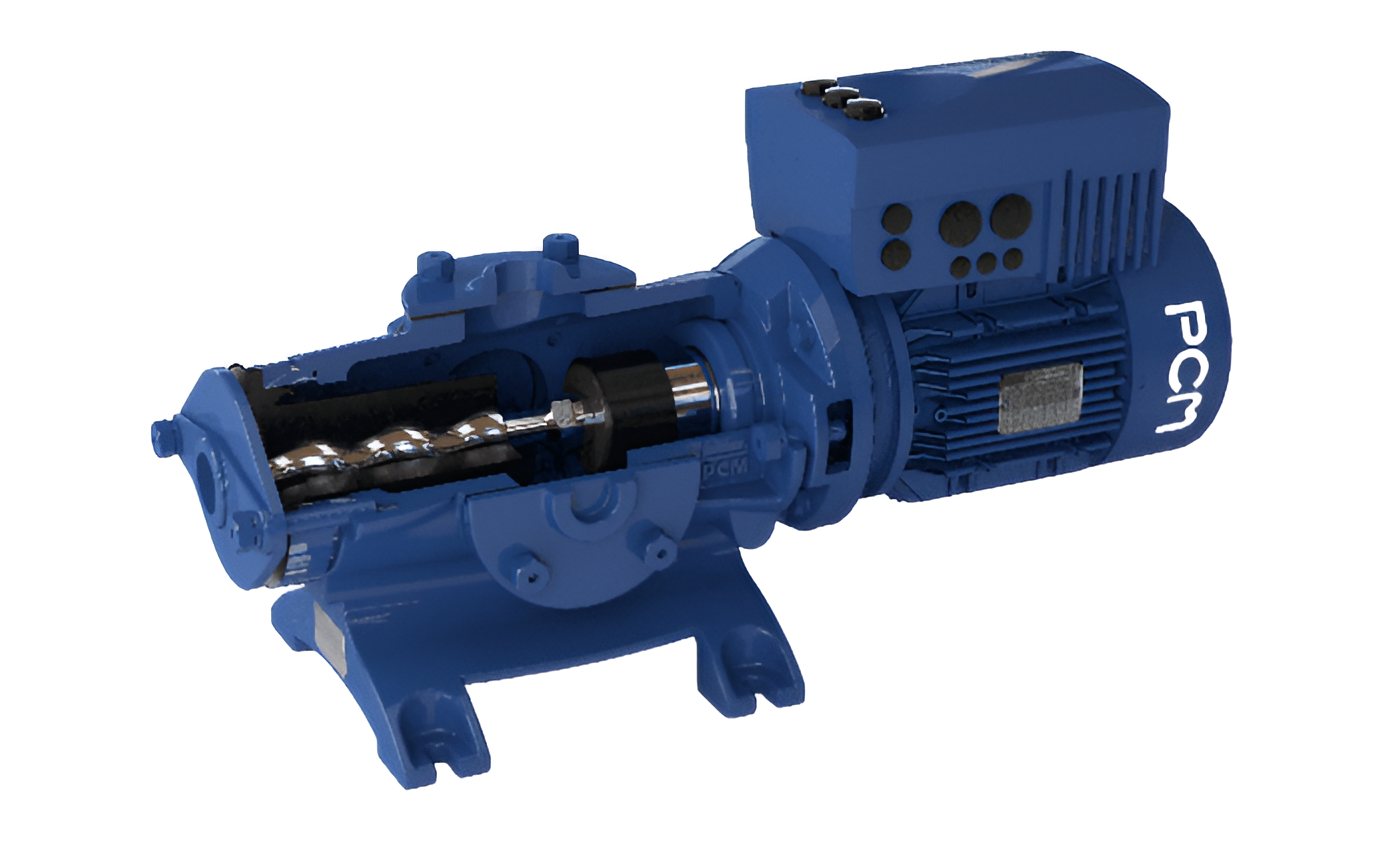

The PCM EcoMoineau™ MF pump with a cast iron body is ideally suited for industrial applications.

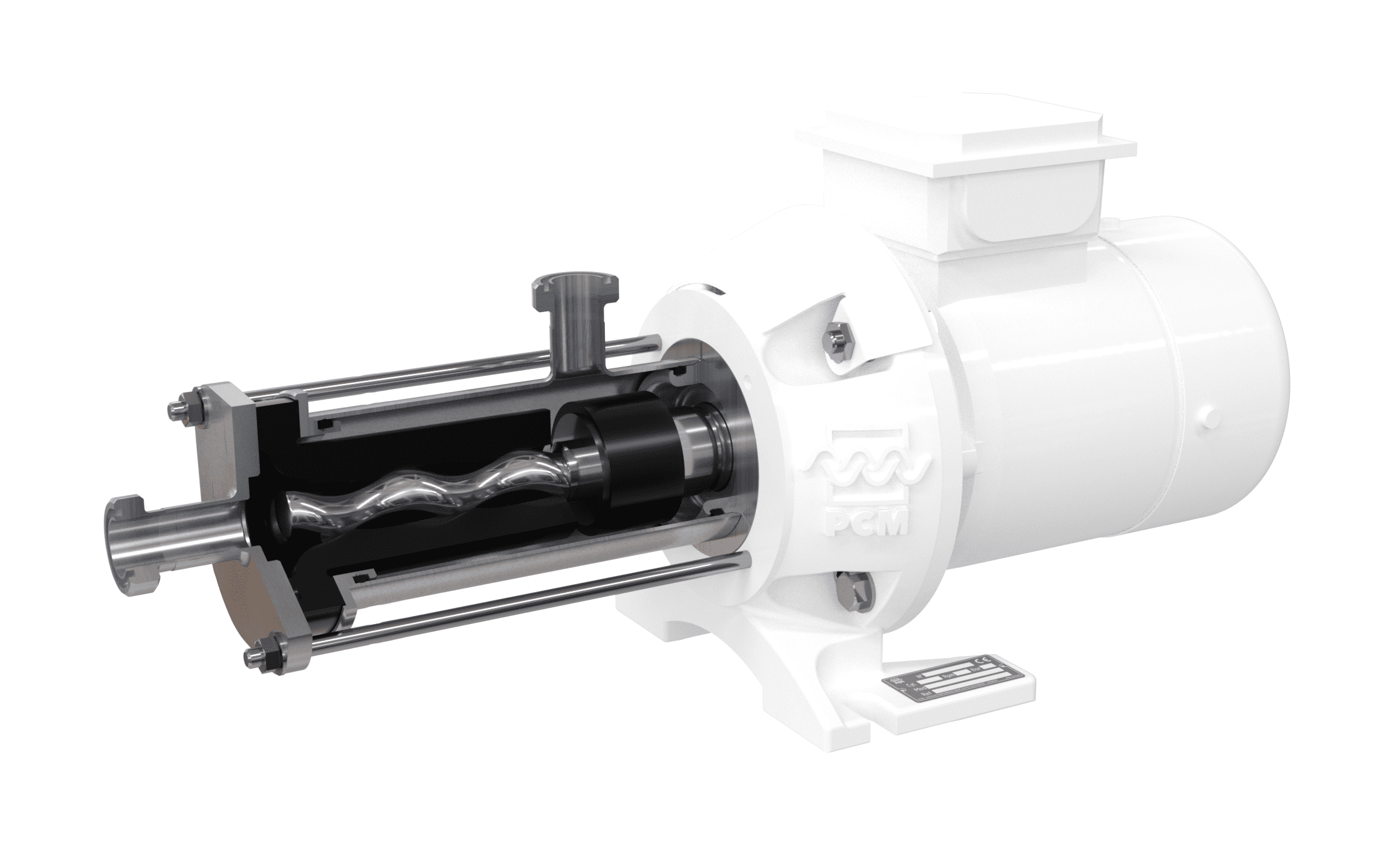

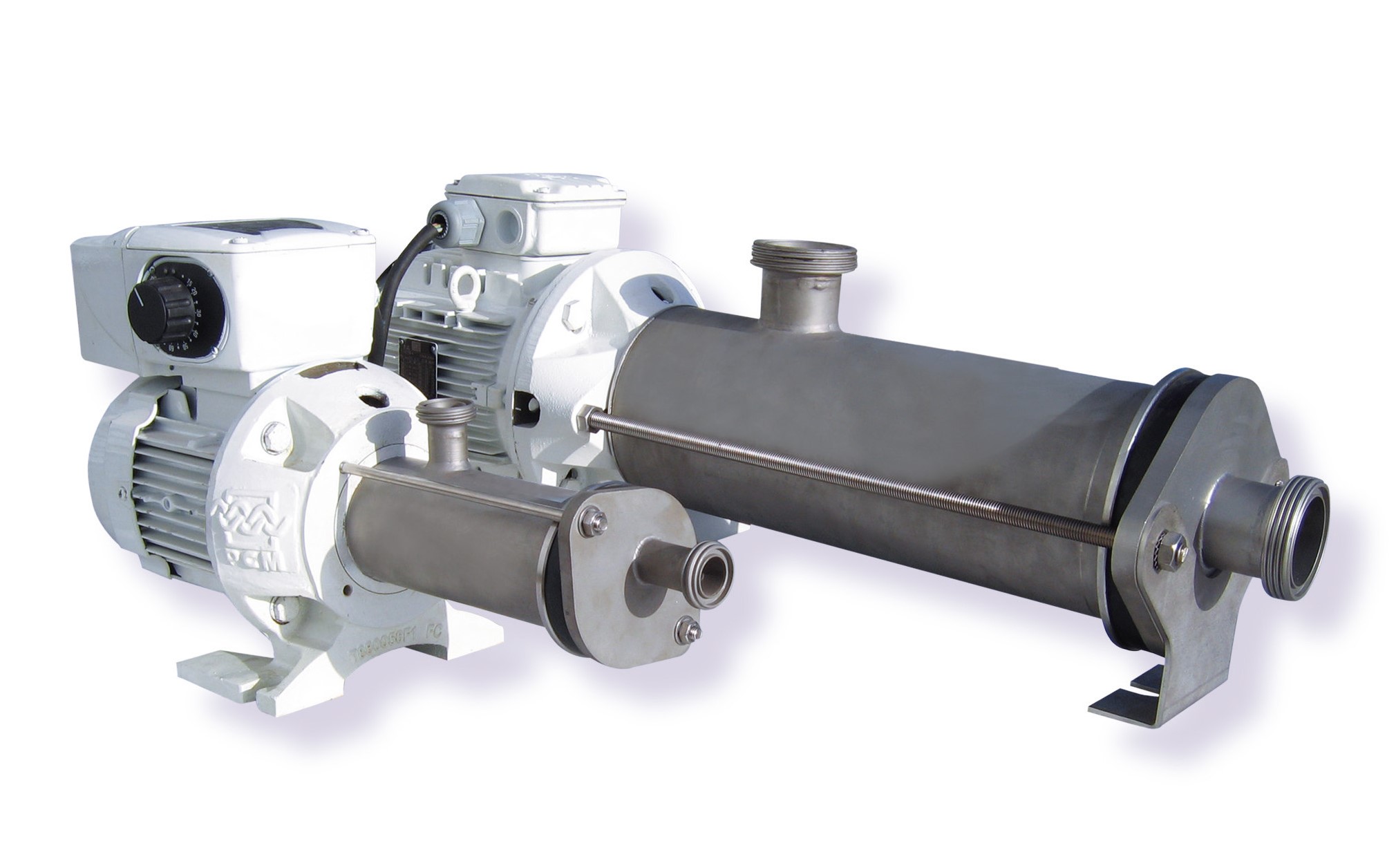

The PCM EcoMoineau™ CF pump with a stainless-steel body makes it a pump suitable for food contact. The stator’s material is also suitable for food contact. Nevertheless, this pump will be just as suitable for industrial applications, for example in the chemical field.

Technical characteristics of PCM compact pumps:

Maximum flow rate: 6 m3/h (15 m3/h for the 16C6F)
Pressure: 6 bar (10 bar for the 4M12F)
Maximum temperature (continuous): 80°C
Allowable particle size: 8 mm
Accessories: pressure sensors, anti-dry run
Options: trolley, by-pass and/or safety, flow and pressure valve. In many cases, the compact PCM pumps are equipped with an integrated frequency inverter on the motor (VFI) and are used as dosing pumps. These two pumps are an advantageous replacement for traditional dosing pumps for applications involving the transfer of viscous, loaded or abrasive products.
